KH-9005 A9-2022 One-Piece Dental Comprehensive Treatment Machine

KH-9005 A9-2022 One-Piece Dental Comprehensive Treatment Machine Technical Parameters

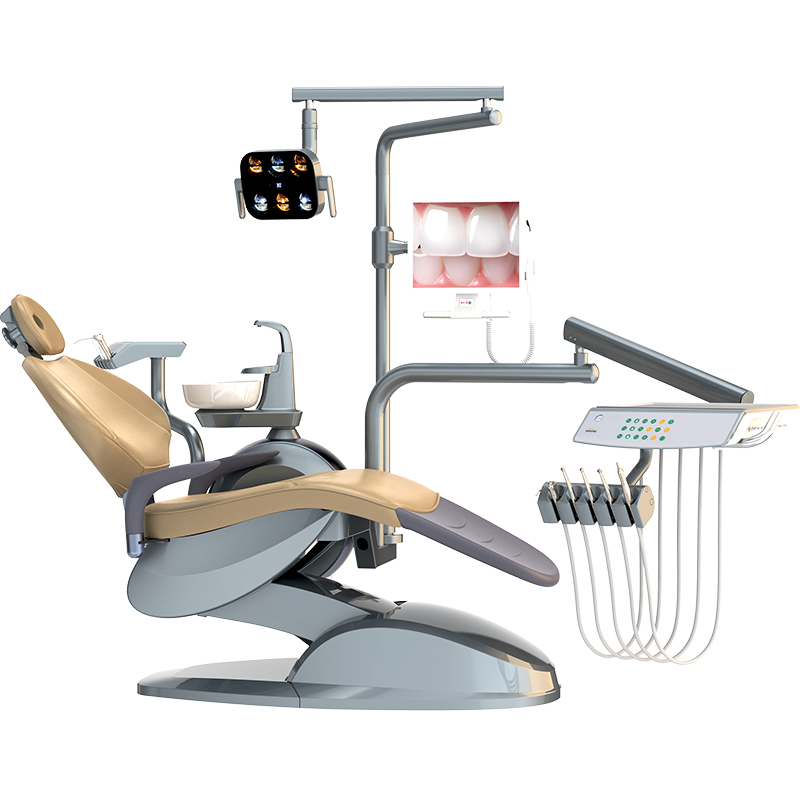

Single Lamp

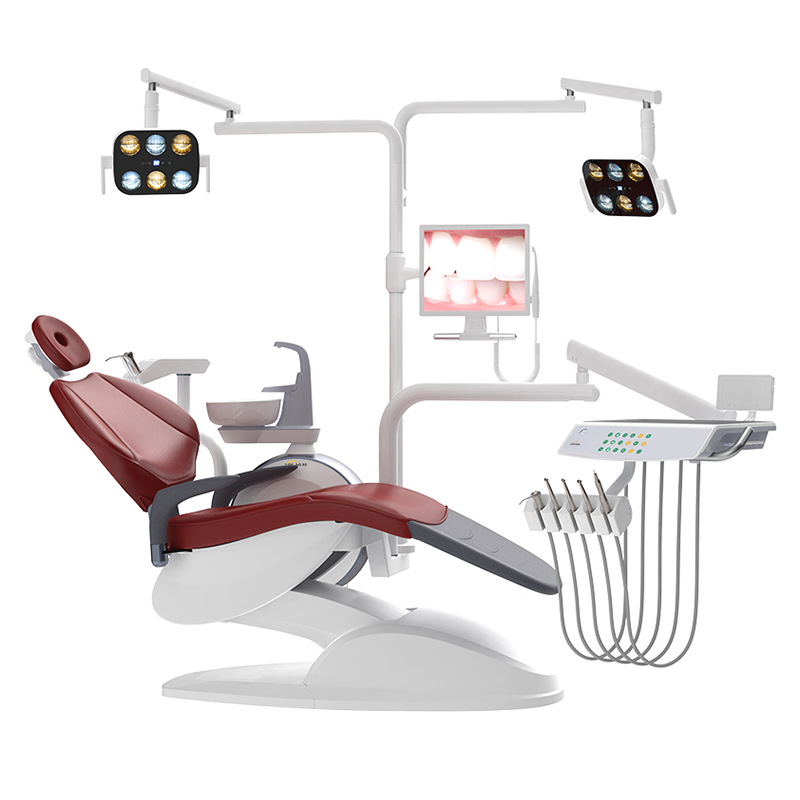

Double Lamp

Samurai Silver

1. Basic technical parameters of the whole machine

1.1 Rated voltage: AC220-240V;
1.2 Frequency: 50Hz; Input power: 800VA;
1.3 Air supply pressure range 0.55-0.80Mpa, flow rate>50L/min;
1.4 Water source pressure range is 0.20-0.40Mpa, flow rate ≥2.5L/min;
1.5 Ambient temperature 10℃-40℃; relative humidity 30%-80%;

2. Intelligent induction anti-resin curing dental lamp

★2.1 6-hole intelligent digital induction LED light, yellow light/white light/mixed light conversion, induction stepless dimming, anti-vertigo lighting design, professional eye protection;
★2.2 Illumination intensity 8000-30000 LUX; color rendering index Ra>90;
2.3 Color temperature 4200-5200K (three-level adjustment);
2.4 The power supply is AC 12-24V;

3. Intelligent control system

★3.1 Slow start and slow stop system: comfortable and stable, running smoothly and without any frustration;
★3.2 Intelligent fault detection system: Automatically detect equipment faults when starting up, and issue an alarm if there is a problem;
★3.3 Intelligent quantitative water supply system, infrared + gravity dual induction, it automatically adds water when it detects the water cup. Repeated automatic water addition does not exceed the set water volume, effectively preventing excessive water from spilling out of the cup. The cup holder is removable for easy cleaning.
3.4 Emergency braking safety device: Equipped with an emergency braking switch, pressing the braking button can immediately cut off the electricity, water and air supply to the entire machine;
3.5 Zero-accidental one-touch water, gas, and electricity switch to prevent accidents caused by accidentally touching pauses during treatment;

4. Comprehensive treatment chair

★4.1 The whole machine adopts aluminum alloy integrated die-casting back bending plate and chair frame base, and the high-strength lifting arm provides high comfort;
★4.2 Patented hollow headrest: It can better support the patient’s head and prevent it from shaking. More breathable, no sweating during long-term treatment;
★4.3 The base is made of high-strength 12mm thick A3 cold-rolled steel plate, which is strong and durable;
★4.4 Multi-purpose dental chair: 38CM ultra-low seat, convenient for people with limited mobility to sit, easy to clean PE footrest;
4.5 Seat cushion length: 122cm, seat cushion’s widest point: 61cm; backrest height: 35cm, backrest’s widest point: 61.5cm;
4.6 The integrated metal endoscope holder not only increases the appearance, but also makes the overall structure stronger and more durable;
4.7 The double armrest design is convenient for supporting hands, and one of the armrests can be rotated 180° to facilitate the elderly or patients with limited mobility to get on and off the dental chair;
4.8 The seat cushion and backrest are ergonomically designed to make patients feel more relaxed during treatment and eliminate patients’ fear;
★4.9 The cushion is made of environmentally friendly microfiber leather, which is soft, breathable, has good biocompatibility with human skin, and is wear-resistant; sharp objects will not leave any obvious traces when scratched on the leather surface. It is mildew-proof and anti-bacterial, and easy to clean and disinfect; fast. Detachable backrest for easy maintenance;
★4.10 Danish brand motor with slow start and slow stop function, which is safer and makes the lifting and lowering of the dental chair smoother and more comfortable;
4.11 Treatment chair lifting range: 38cm-74cm;
4.12 The maximum load-bearing range of the seat is ≤200KG;
4.13 Service life: ≥15 years;

5. Instrument tray

★5.1 Bottom-mounted instrument tray: The large-area tool table can place more tools needed for treatment. The handle of the tool tray is square in design to avoid pulling on the doctor’s clothes during use. The stainless steel handle is strong and durable and can be sterilized for safer use;
5.2 Tool table: length: 45cm, width: 29cm;
5.3 The large card slot design makes it easier to put the phone into the holder and can effectively prevent the phone from crashing;
5.4 Independent water and gas control system Dual process processing: two high and one low mobile phones have three independent water and gas control systems that do not interfere with each other. Compared with traditional control systems, the three systems work independently, with even usage load and longer service life;
5.5 Equipped with a three-purpose gun with a stainless steel handle; equipped with a removable high-temperature sterilizing silicone pad;
5.6 Multi-function button panel to control patient chair movement, phlegm flushing and water supply, viewing light, dental light, memory position and other functions;

6. Chassis body

★6.1 The cabinet can be rotated 180°. The stylish round three-dimensional chassis can be converted into a left-handed dental chair;
6.2 The box shell is made of ABS engineering materials, which is beautiful and durable, and keeps the internal environment clean and tidy;
6.3 The connector has small stress, is light in weight, and has strong stability of the dental chair;
★6.4 Independent separation layout of water, gas and electricity, clear structure, easy opening of the side door of the box for easy maintenance;
6.5 Equipped with a mouthwash heating system, the water temperature is 40℃±5℃; equipped with a water purification system;
6.6 The spittoon can be rotated 90° to facilitate patient spitting, and the glass material is removable for easier cleaning;
6.7 The outlet of the phlegm flushing tube is higher than the spittoon, which complies with ISO and Food and Drug Administration standards;
6.8 Equipped with independent strong suction system and weak suction system;
6.9 Dual 600ml water storage bottles, thickened bottle mouth design, more durable, enlarged bottle mouth to facilitate filling of pure water;
★6.10 Automatic constant temperature water heater with anti-dry function (24V/80W);
★6.11 Equipped with high-quality water and gas pipelines, the pipe wall is thicker, has excellent resilience, is resistant to high temperatures and pressures, has strong frost resistance, and can recover quickly after discounts. Excellent resistance to acid and alkali corrosion, effective use for eight to ten years;

7. Multifunctional pedals

7.1 While satisfying the comfort of doctors for long-term continuous work, it also integrates multiple dental chair control functions to reduce the chance of hands being contaminated by touching the equipment and improve work efficiency;
7.2 Mobile phone working status control, mobile phone water independent control, seat lift control, backrest pitch control, oral light switch, water cup water supply;

8. Multifunctional assistant sub-control panel

8.1 Equipped with a stainless steel handle three-purpose gun; equipped with a set of strong suction handle and weak suction handle;
8.2 Equipped with a multi-function assistant control panel, including: spittoon control button, water supply control button, treatment chair upward and downward movement buttons, treatment chair backrest upward and downward movement buttons, mouthwash heating button, and oral light on/off button;

9. Floor box

9.1 Closed power supply: clear structure, in accordance with European safety standards; moisture-proof, dust-proof, splash-proof, and electromagnetic interference-proof; exposed wires comply with human body safety voltage;
9.2 Automatic pressure relief to extend pipeline life;
9.3 Moisture-proof, splash-proof and electromagnetic interference-proof, improving the durability of the power supply of the whole machine;
9.4 Built-in floor box design, the water, gas and electricity unit is connected to the dental chair, hiding all pipes, making it clean and hygienic;

10. Doctor’s chair

10.1 Equipped with an ergonomic saddle chair, the chair can be adjusted up and down, and the chair back can be adjusted forward and backward;
10.2 The casters adopt large silent wheels, which are strong and durable and not easy to break;
10.3 Seat lifting range: 490mm-610mm;

🛡️ Advanced Ergonomic Design for Ultimate Comfort

Features a multi-purpose dental chair with a patented hollow headrest, ultra-low seat height, and ergonomically designed cushions made of environmentally friendly microfiber leather for maximum patient comfort and ease of use for individuals with limited mobility.

💡 Intelligent LED Dental Lamp with Eye Protection

Equipped with a 6-hole intelligent digital induction LED light offering yellow, white, and mixed light modes, featuring anti-glare design and stepless dimming to protect professionals’ eyes during procedures.

🎚️ State-of-the-Art Intelligent Control System

Incorporates a slow start and stop system, intelligent fault detection, and an innovative quantitative water supply system, enhancing the safety and efficiency of dental treatments.

🔄 Comprehensive Instrument and Assistant Features

Includes a bottom-mounted instrument tray with a square handle and an independent multi-functional assistant sub-control panel, facilitating easier and safer operations during dental procedures.

🌡️ Optimized Utility and Safety Measures

The design boasts a dual water and suction system, automatic constant temperature water heater with anti-dry function, and an emergency braking safety device, ensuring a reliable and safe environment for dental practices.
